2009 MBK Booster 12inch Naked Scooter pictures, specifications

2009 MBK Booster 12inch Naked

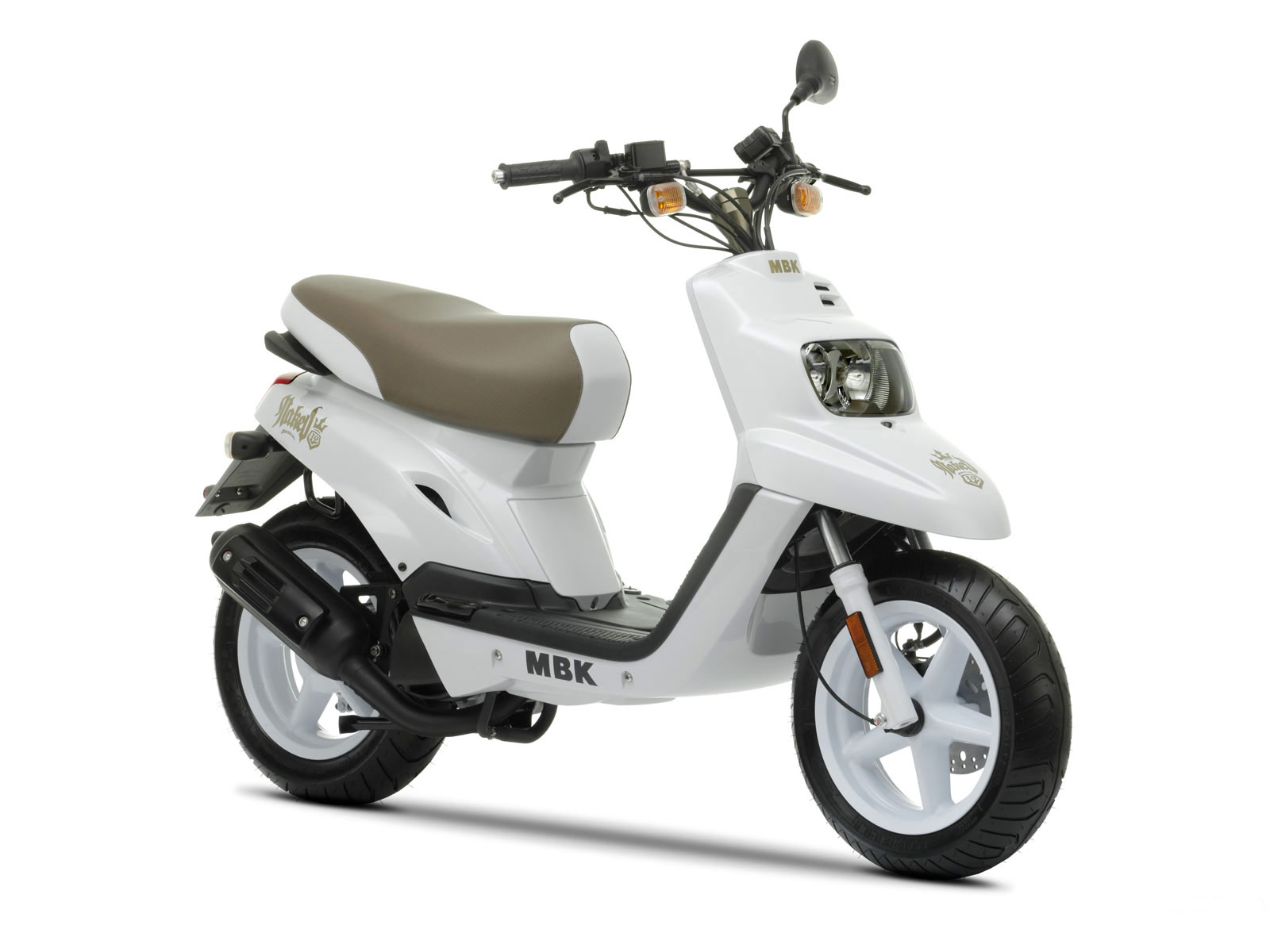

MBK Scooter pictures


2009 MBK Booster 12inch Naked
Click Thumbnail to download (size 1600 x 1200 pixels)





Specifications

Model: MBK Booster 12-inch Naked
Year: 2009
Category: Scooter
Rating: 66.5 out of 100.

Engine and transmission
Displacement: 49.20 ccm (3.00 cubic inches)
Engine type: Single cylinder
Stroke: 2
Power: 3.21 HP (2.3 kW)) @ 6500 RPM
Torque: 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM
Compression: 7.2:1
Bore x stroke: 40.0 x 39.2 mm (1.6 x 1.5 inches)
Lubrication system: Separate lubrication
Cooling system: Air
Gearbox: Automatic
Transmission typefinal drive: Belt
Clutch: Automatic centrifugal
Ignition: CDI
Starter: Electric & kick

Physical measures
Dry weight: 75.0 kg (165.3 pounds)
Weight incl. oil, gas, etc: 82.0 kg (180.8 pounds)
Seat height: 768 mm (30.2 inches) If adjustable, lowest setting.
Wheelbase: 1,172 mm (46.1 inches)
Overall length: 1,685 mm (66.3 inches)
Overall width: 675 mm (26.6 inches)
Overall height: 1,049 mm (41.3 inches)
Ground clearance: 124 mm (4.9 inches)

Chassis and dimensions
Front suspension: Telescopic fork
Front suspension travel: 70 mm (2.8 inches)
Rear suspension: Unit swing
Rear suspension travel: 70 mm (2.8 inches)
Front tyre dimensions: 120/70-12
Rear tyre dimensions: 130/70-12
Front brakes: Single disc
Front brakes diameter: 180 mm (7.1 inches)
Rear brakes: Expanding brake (drum brake)
Rear brakes diameter: 110 mm (4.3 inches)

Speed and acceleration
Power/weight ratio: 0.0428 HP/kg

Other specifications
Fuel capacity: 5.30 litres (1.40 gallons)
